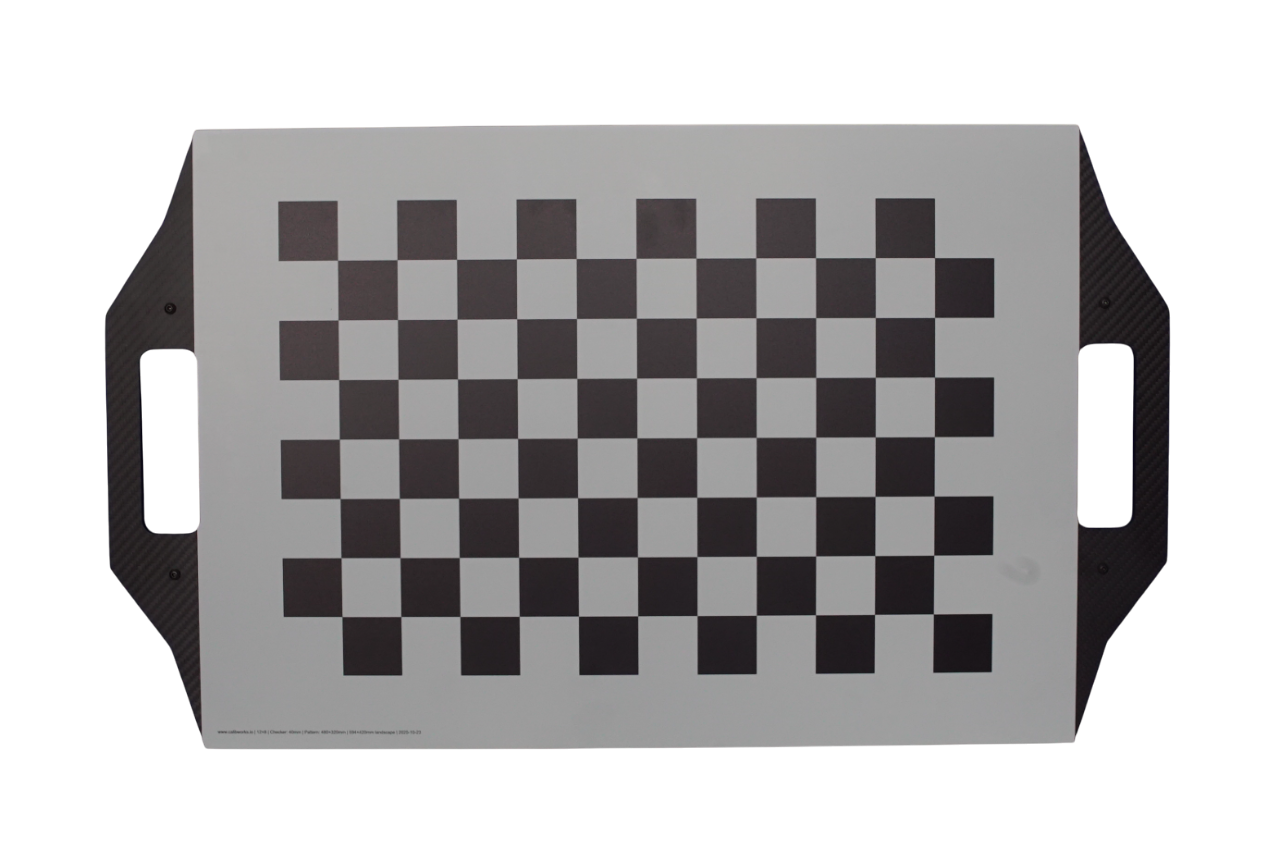

Professional Calibration Boards
High-precision chess pattern calibration boards with aerospace-grade backing materials for superior flatness and dimensional stability.
- Aluminum or carbon fiber backing options
- Multiple pattern sizes (5x5 to 20x20)
- Sub-pixel corner detection accuracy
- Weather-resistant coating available
Backlit Calibration Boards
Revolutionary calibration boards with integrated LED backlighting for dark lens calibration without external lighting systems.
- Uniform edge-lit LED illumination
- Chess, circle, and random dot patterns
- Adjustable brightness control
- Custom marker patterns available
Event-Vision Calibration Boards
Specialized flickering backlit boards with programmable LED driver for event-based camera calibration. Adjustable flicker frequency optimized for neuromorphic vision sensors.
- Programmable flicker: 1Hz - 10kHz
- Variable duty cycle control (10-90%)
- USB/Serial control interface with SDK
- Compatible with DVS/DAVIS event cameras

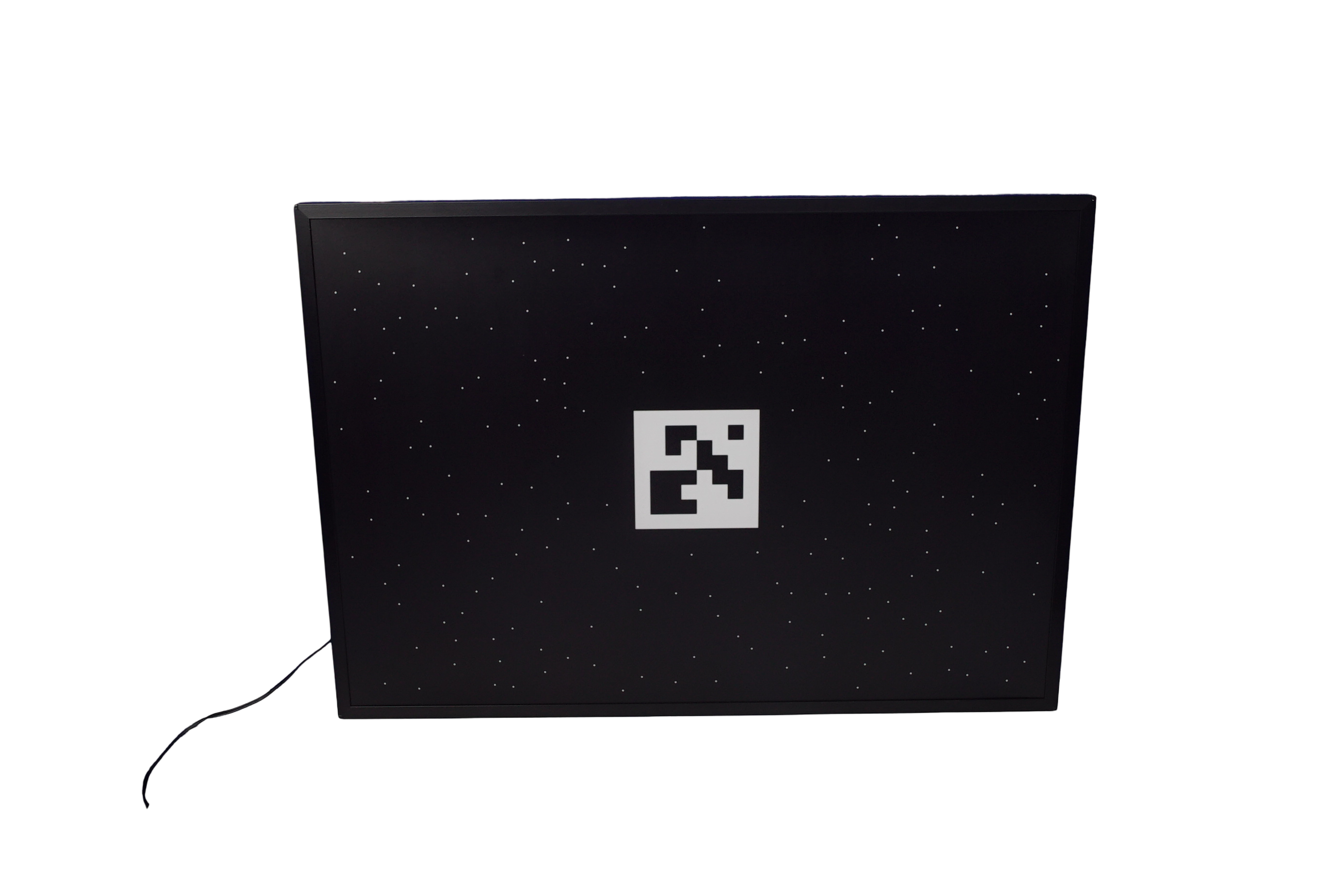

IR Backlit Calibration Boards
Specialized infrared calibration boards for thermal and NIR camera systems with band-pass filter compatibility.
- 850nm, 940nm wavelength options
- Band-pass filter compatible
- High-power IR LED array
- Thermal management system
IR Backlit Event-Vision Calibration Boards
Specialized flickering IR backlit boards for event-based cameras with IR band-pass filters. Combines programmable flicker for event cameras with IR wavelength compatibility.
- 850nm/940nm IR LED with flickering
- Programmable flicker: 1Hz - 10kHz
- IR band-pass filter compatible
- USB/Serial control with SDK

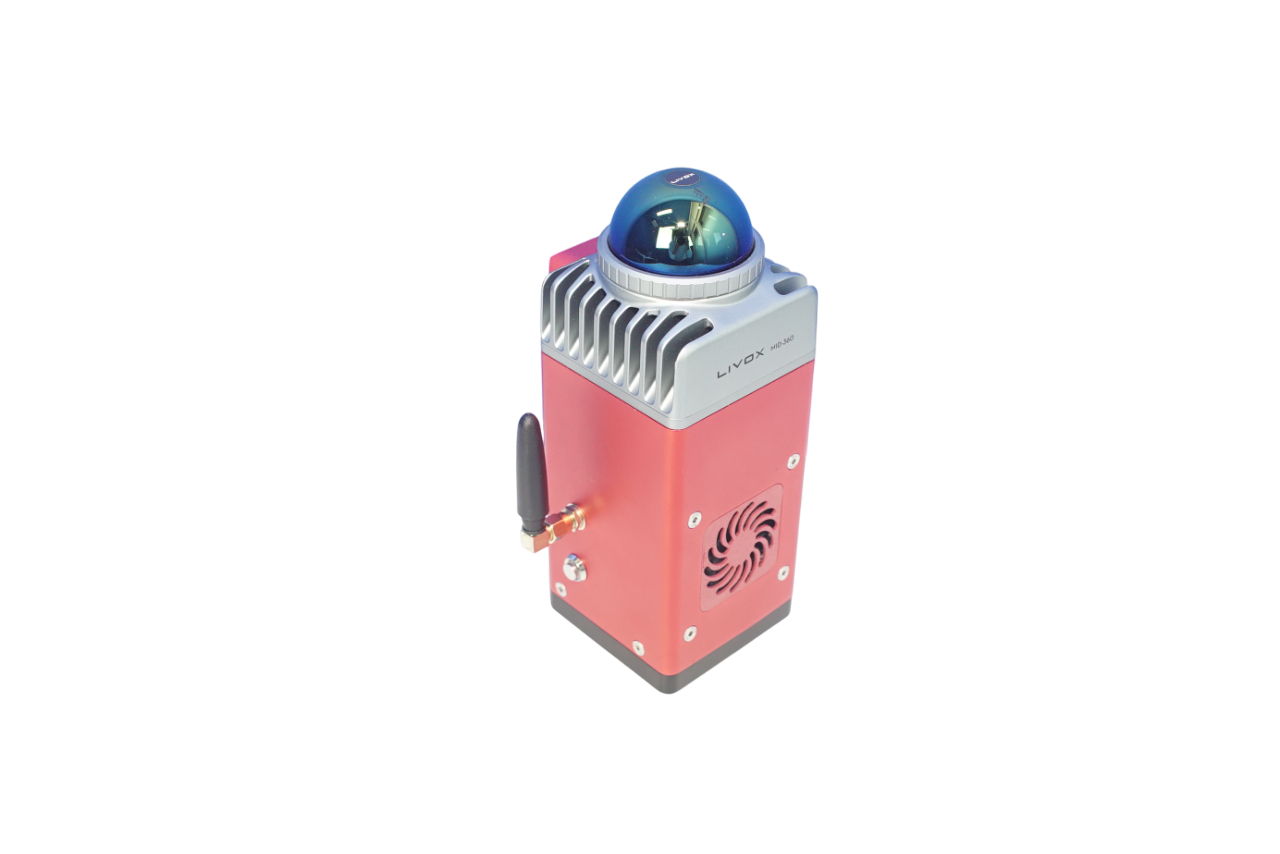

3D Scanner System
Advanced 3D scanning solution for LiDAR-camera calibration with automated 3D dot marker reconstruction capabilities.
- 0.1mm scanning resolution
- Automated marker detection
- Multi-surface scanning
- Real-time point cloud processing

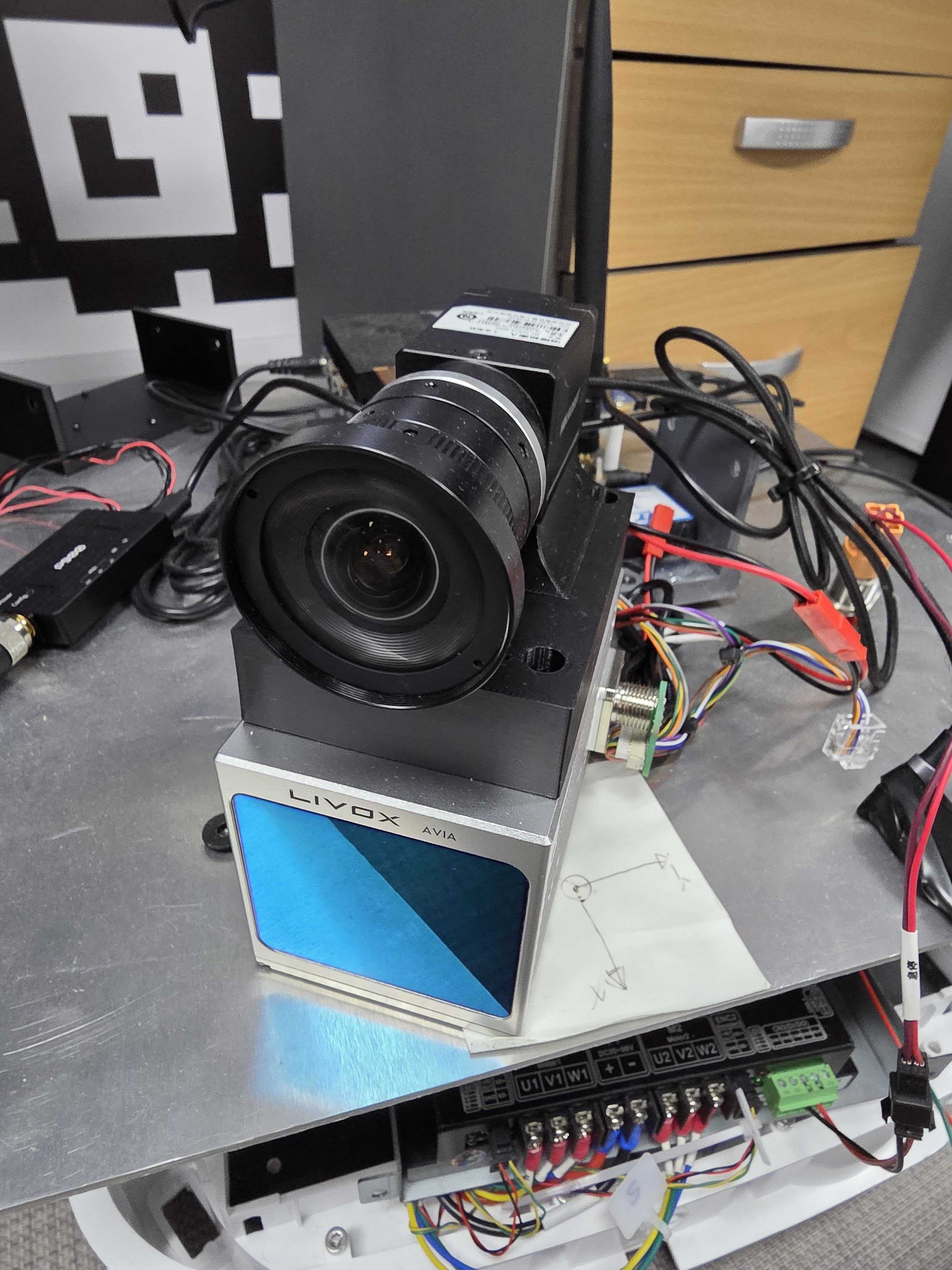

Cam-LiDAR Calibration Kit
Professional calibration kit with 1000W lighting system and precision jigs for accurate camera-LiDAR extrinsic calibration.
- 1000W professional halogen lighting
- Precision alignment jigs
- Quick-release mounting system
- Calibration software included
